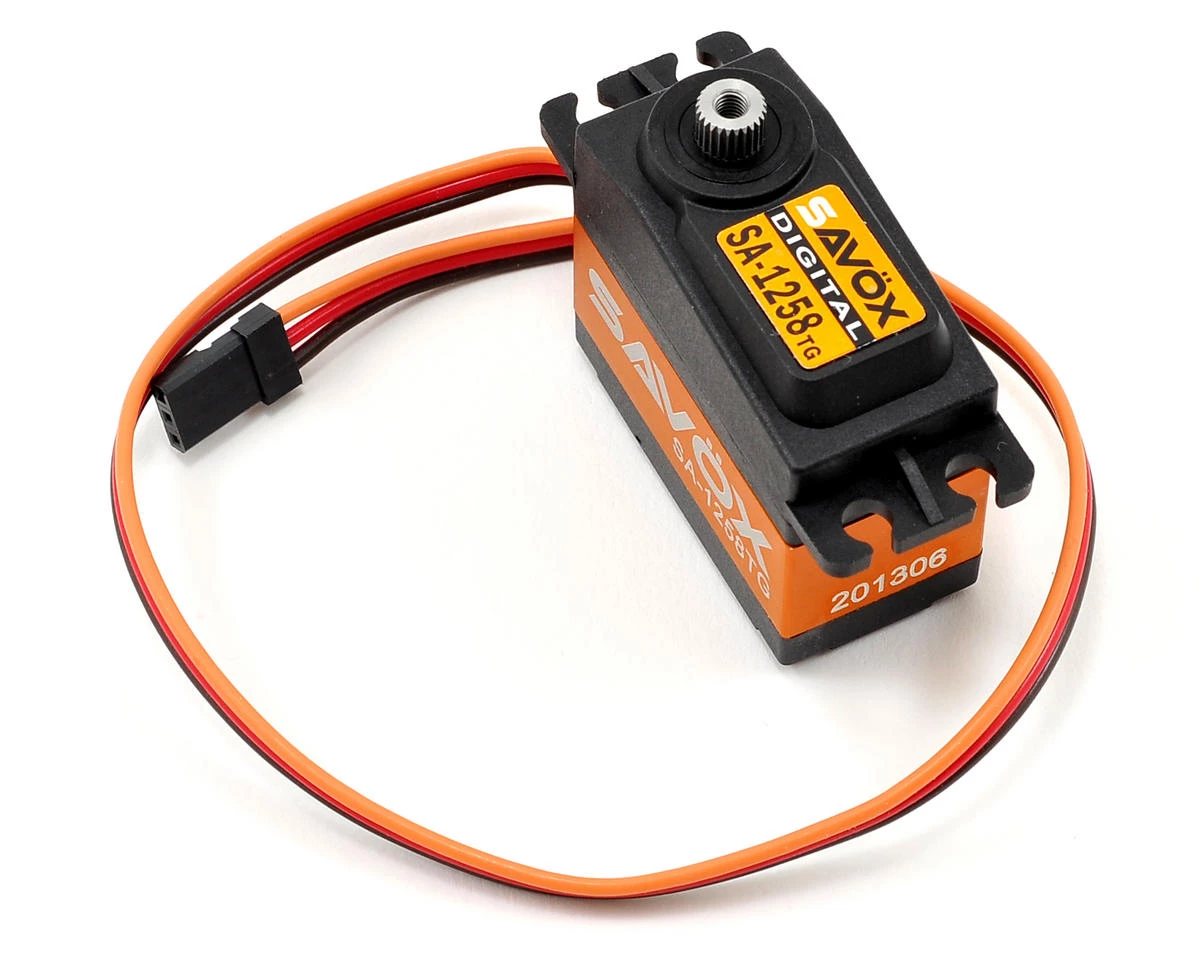

Savox SA-1258TG Standard Digital “High Speed” Titanium Gear Servo

This is the Savox SA-1258TG Standard Digital “High Speed” Titanium Gear Servo. The SA-1258TG combines leading edge technology with super high 12-bit (4096) resolution and titanium and aluminum gears for one amazing servo! With titanium and aluminum gears, this servo is truly magical. Pushing 167 ounces of torque and a blistering .08 transit time, this servo is redefining what an all-around servo should be capable of. This is a great upgrade to most comparably priced servos. The minimized backlash on the SA-1258TG is helpful in plane wings for greater accuracy and less gear play.

Features:

• Combines leading edge technology with super high 12 bit (4096) resolution and titanium gears
• Super light-weight
• Coreless motor provides high speed, incredible efficiency, and low power consumption
• Extremely strong titanium gears ensure long-life and durability
• The aluminum case design not only looks good but also allows for cooler and smoother operating temps
• Our servos are totally green – from materials to production, these servos are environmentally friendly
• Ideal for plane applications where a minimized backlash is needed

Specifications:
Dimensions(mm): 40.3×20.2×37.2
Weight(g): 52.4
Speed(@4.8V sec/60): .10
Torque(@4.8V oz-in): 133.3
Speed(@6.0V sec/60): .08
Torque(@6.0V oz-in): 166.6
Gear: Titanium & Aluminum
Bearing: 2BB
Case: Aluminum
Spline: 25 Tooth

This product was added to our catalog on July 3, 2013
