Savox SC-1257TG Black Edition “Super Speed” Titanium Gear Servo

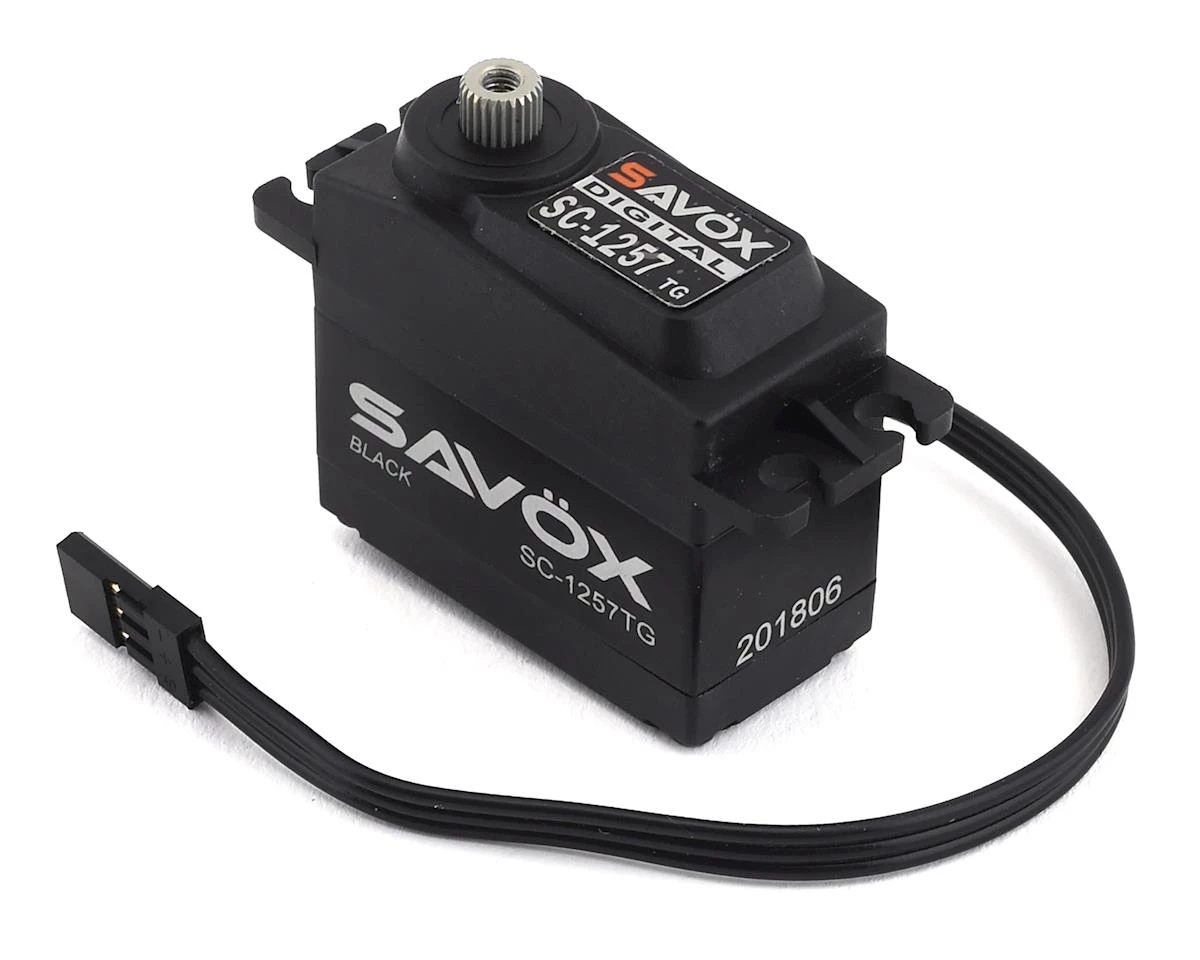

Savox’s SC-1257TG-BE Black Edition “Super Speed” Digital Titanium Gear Servo features a sleek black aluminum center case with laser etched details, as well as a 250mm long lead wire. The Savox SC-1257TG-BE combines leading edge technology with super high 12 bit (4096) resolution and Titanium Gears. It produces 138 oz-in and .07 transit speed at 6.0V, making it a great option for 1/10th scale 2wd buggies.

Features:

• Black aluminum center case
• Light weight
• Coreless Motor provides high speed, incredible efficiency, and low power consumption
• Super strong titanium gears
• The Aluminum Case design not only looks good but also allows for lower operating temperatures.
• Totally Green – from materials to production, these servos are environmentally friendly.
• Ideal for steering servo on 1/10 scale Buggies.

*NOTE: Certain combinations of receiver and ESC have been found to cause “Brown Out” issues when combined with Savox servos. An external BEC, or BEC stabilizing receiver capacitor may be needed for efficient, glitch free operation in low voltage electric applications.

Specifications:

• Speed:
• @4.8V: .09 sec/60
• @6.0V: .07 sec/60
• Torque:
• @4.8V: 111.1 oz-in
• @6.0V: 138.9 oz-in
• Weight: 52.4g
• Wire Length: 250 +/- 5mm
• Bearing: Dual
• Type: Standard
• Gear: Titanium and Aluminum
• Case: Aluminum Heatsink
• Output Shaft: 25T Spline
• Case Size (LxWxH): 40.3x20x37.2mm
• Frequency: 250-333hz
• Pulse Width Frequency: 1520

This product was added to our catalog on September 29, 2015
